High-end Mobile Audio / Video Package

"High-end" mobile Audio / Video package
for medium size venues.

All quoted prices reflect current vender prices, and availability with shipping.
They are subject to change as market variables occur.
System integration and construction cost are not include in quoted prices.
This system is proposed as an ala cart type menu
and modifications to this base system are encouraged
to fit your specific requirements.

Resolution: 1024 x 768 pixels native, up to UXGA (1600 x 1200) with Advanced AccuBlend Light
Range: Horizontal - 15 - 100KHz, Vertical 50 - 120Hz Video Bandwidth: RGB 100MHz (-3dB), Video 6.5MHz (-3dB), monitor output bandwidth 80MHz (-3dB)
Lamp Life: 2000 hours Eco-mode, 1500 hours
simultaneously Inputs: Computer: (2) mini D-Sub 15-pin, YCbCr Component Video through mini D-Sub 15-pin (optional cable) Video: (1) RCA, (1) S-Video (NTSC, PAL, PAL-60, SECAM, NTSC4.43, PAL-N, PAL-M) HDTV - 1080i, 1080i/50, 720p, 480p, 480i, PAL progressive/50 Audio: (1) mini audio, (1) L/R RCA PC Card: PCMCIA type II USB Type A: mouse control of menu and on-screen annotations. USB Type B: connect to computer for remote control and PC control port Outputs: (1) monitor output (mini D-Sub 15-pin), (1) mini audio with variable audio

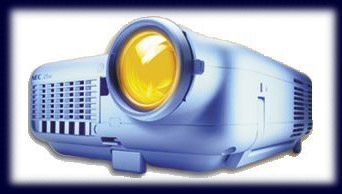

2100 Lumen DLP Projector $ 7,995.00

Standard Color Reproduction: 16.7 million colors displayed
Warranty: Registered owners receive a 3-year limited parts and labor warranty. Lens: F2.2 - 2.5, f = 28.3 - 34.0 Contrast Ratio: 1300:1
Output: Up to 2100 ANSI Lumens Lamp: 220W DC igniter-less lamp (new technology provides higher efficiency and reliability) Projection Distance: 35.7" - 298.9"
Image Size: 30" to 200" diagonal
Input Current: 3.0A(100 - 120VAC), 1.5A(200-240VAC)
10.2" x 11.8" x 4.7" Net Weight: 2.9Kg/6.5Lbs

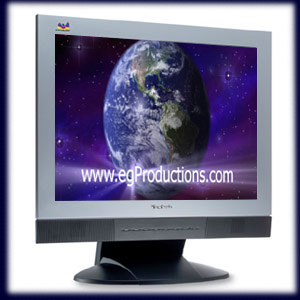

20" LCD Monitor $ 1,595.00

The LCD display is the top-of-the-line choice for professionals. When ease of cognition is essential, the 20" LCD is a smart choice. The large 1.9 megapixel (1600x1200) display provides extremely legible images, making it ideal for professional applications such as engineering design, financial analysis and medical . What's more, it comes with two 3-watt bezel-integrated speakers and pivots easily between landscape and portrait mode with the free PerfectPortrait? software. For power users looking for a multimedia LCD, the VP201m LCD display is the clear choice.

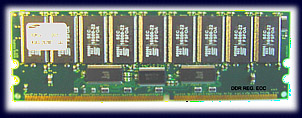

Dual - P4 Xeon 2.8Ghz CPUs With 2GB of ECC Memory System $ 5,345.00
High-end workstation utlizing Dual Intel Xeon processors up to 3.06GHz with 512K L2 cache each. Intel E7505 chipset and 533/400 MHz Front Side Bus Up to 12 GB ECC registered DDR-200/266 memory in 6 DIMM slots. Two-way interleaved memory banks provide outstanding memory performance. (must use a pair of DIMMs for memory to function) I/O Expansion:1 8xAGP Pro 1.5V 1 64-bit 133MHz PCI-X 2 64-bit 100MHz PCI-X 2 32-bit 33MHz PCI Onboard Devices:Support U320 Zero-channel RAID (Adaptec 2010S), card not included Dual EIDE ports support Ultra DMA 100MB/s of Burst data transfer rate, supports UDMA Mode 5, PIO Mode 4 and ATA/100 Onboard Adaptec AIC-7902 dual channel Ultra320 SCSI controller Intel 82545EM Gigabit Ethernet controller AC'97 audio CODEC high quality 6-channel sound 1 Floppy port 2 Fast UART 16550 serial ports 1 ECP/EEP parallel port Up to 6 Hi-Speed USB 2.0 ports (get a 480 megabits per second transfer rate) wireless Infrared port PS/2 keyboard and mouse ports

Microsoft Windows 2000 Professional
Operating Systems
OEM version to support 2 CPUs $ 155.00

2- 120 GB EIDE ATA 133 7,200rpm Hard Drive $ 235.00ea		18 GB 15,000rpm ULTRA 320 SCSI Hard Drive $ 416.00

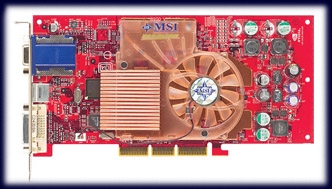

4.4 billion AA sample/sec. fill rate 125 million vertices/sec. 8.8 GB/sec. memory bandwidth 2.1 GB/sec. AGP Bus bandwidth 640x480 8/16/32 bit colors with 150Hz 800x600 8/16/32 bit colors with 150Hz 1024x768 8/16/32 bit colors with 120Hz DLP Projector Native Resolution 1152x864 8/16/32 bit colors with 120Hz 1280x1024 8/16/32 bit colors with 100Hz 1600x1200 8/16/32 bit colors with 85Hz 1920x1200 8/16/32 bit colors with 75Hz 2048x1536 8/16/32 bit colors with 60Hz		Graphics Card AGP8X with 128MB onboard memory $ 425.00

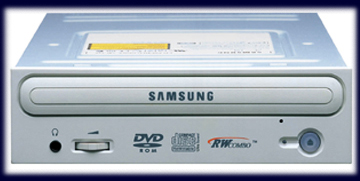

		CD-RW / DVD player COMBO DRIVE $ 149.00
		Write on CD-Record 48X ( 7,200 KB/sec) Write on CD-Rewrite 24X ( 3,600KB/sec) Read CD Titles 48X (7,200KB/sec) Read DVD 16X (21,600KB/sec)

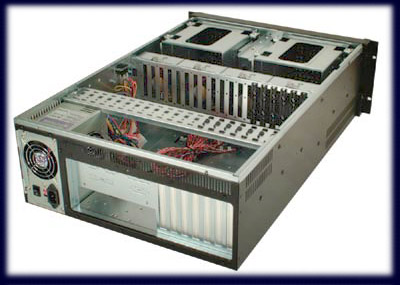

Rackmount chassis with 550 Watt ATX12V
power unit$ 449.00

4U rackmount chassis for ATX Motherboards (up to 12" x 13") 6 x 5.25, 1 x 3.5"
(External) 1 x 3.5" (Internal) 7 expansion slots
4 x 90mm ball bearing hot-swappable fans

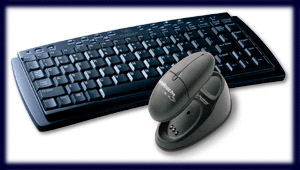

Wireless RF Keyboard & Mouse Bundle $ 412.00
For the ultimate wireless solution,
pair your GyroMouse Presenter
with Gyration's advanced Mobile Keyboard!
This wireless keyboard offers a 100-ft RF range
and comes with its own receiver
that plugs into your computer's USB port.

Color Photo Printer$ 345.00
6-COLOR (CCMMYK) MICRO PIEZO INK JET TECHNOLOGY BORDERLESS PRINTING 4 X 6 5 X 7 AND 8.5 X 11 SUPPORT MONOCHROME HEAD: 48 NOZZLES COLOR HEAD: 240 NOZZLES RESOLUTION: 2880 X 720 DPI; 1440 X 720 DPI; 720 X 720 DPI; 360 X 360 DPI; 120 X 120 DPI INK DROPLET SIZE: 4 PICOLITERS PRINT SPEED: 4 X 6 PHOTO: 48 SECS. 8 X 10 PHOTO: 1 MIN. 51 SECS. BLACK TEXT MEMO: APPROX. 9 PPM.

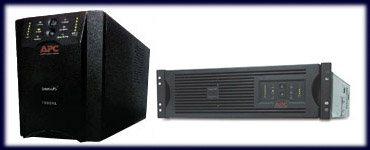

600Watt Back-up Power Supply $ 924.00
Smart-UPS protects your data by supplying network-grade battery backup when power fails. With PowerChute® plus software the uninterruptible power supply will safely store data and shut down your computer operating system before the battery is fully discharged.

Custom sound system with wireless microphones$ ?,???.00
		Yes... it will have sound of some kind. This section is being researched.

Shock Resistant Road Cases
Price dependent upon system configuration.

THERMODYNE impact resistant cases are available in custom colors and LOGOS, and heavy duty wheels with retractable handle make transporting your equipment a breeze.

* All Prices subject to change without notice
